TO REDUCE THE RISK OF FIRE, REPLACE WITH THE SAME TYPE AND RATING OF FUSE.
UTILISER UN FUSIBLE DE RECHANGE MÊME TYPE.
This product has been designed to meet the IEC 60065 international electrical safety standard.
RISK OF ELECTRIC SHOCK DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: To reduce the risk of electrical shock do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.
CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the socket and insert the plug fully into the socket.
This product is designed and manufactured to meet strict quality and safety standards. However, you should be aware of the following installation and operation precautions.
You should read all the safety and operating instructions before operating this appliance. Retain this handbook for future reference and adhere to all warnings in the handbook or on the appliance.
The presence of electricity near water can be dangerous. Do not use the appliance near water – for example next to a bathtub, washbowl, kitchen sink, in a wet basement or near a swimming pool, etc.
Take care that objects do not fall and liquids are not spilled into the enclosure through any openings. Liquid-filled objects such as vases should not be placed on the equipment.
Do not place the equipment on a bed, sofa, rug or similar soft surface, or in an enclosed bookcase or cabinet, since ventilation may be impeded. We recommend a minimum distance of 50mm around the sides and top of the appliance to provide adequate ventilation.
Locate the appliance away from naked flames or heat producing equipment such as radiators, stoves or other appliances (including other amplifiers) that produce heat.
The appliance has been designed for use in moderate climates.
Only use a rack or stand that is recommended for use with audio equipment. If the equipment is on a portable rack it should be moved with great care, to avoid overturning the combination.
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft, damp, lint-free cloth. Do not use paint thinners or other chemical solvents for cleaning.
We do not advise the use of furniture cleaning sprays or polishes as they can cause indelible white marks if the unit is subsequently wiped with a damp cloth.
This appliance must be connected to a mains socket outlet using the supplied power cord. To disconnect this apparatus from power, you must disconnect the power cord. Make sure the power cord is always easily accessible.
Only connect the appliance to a power supply of the type described in the operating instructions or as marked on the appliance.
This is a Class 1 device and must be earthed.
The power switch is a single-pole switch. When the switch is in the “Off” position, the appliance is not completely disconnected from the main power.
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, and the point where they exit from the appliance.
Ensure that the grounding means of the appliance is not defeated.
Locate any outdoor antenna/aerial away from power lines.
If the unit has a stand-by function, a small amount of current will continue to flow into the equipment in this mode. Unplug the power cord of the appliance from the outlet if left unused for a long period of time.
If an abnormal smell or smoke is detected from the appliance, turn the power off immediately and unplug the unit from the wall outlet. Contact your dealer immediately.
You should not attempt to service the appliance beyond that described in this handbook. All other servicing should be referred to qualified service personnel.
The appliance should be serviced by qualified service personnel when:
A. the power-supply cord or the plug has been damaged, or
B. objects have fallen, or liquid has spilled into the appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or exhibits a marked change in performance, or
E. the appliance has been dropped or the enclosure damaged.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes :
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.
The CE symbol indicates that this Primare product complies with the EMC (Electromagnetic Compatibility) and LVD (Low Voltage Directive) standards of the European Community.
The WEEE symbol indicates this Primare product complies with the European Parliament and Council Directive 2002/96/EC concerning Waste Electrical and Electronic Equipment (WEEE). This product must be appropriately recycled or processed in accordance with these directives. Consult your local waste disposal authority for guidance.
The RoHS symbol indicates that Primare products are designed and manufactured to comply with the Restriction of Hazardous Substances (RoHS) as stated in the European Parliament and Council Directive 2002/95/EC.
Copyright © 2017-18 Primare AB.
All rights reserved.
Primare AB
Limstensgatan 7
21616 Limhamn
Sweden
Issue: DD35/2 (20/11/2018)
The information in this guide is believed to be correct as of the date of publication. However, our policy is one of continuous development and so the information is subject to change without notice, and does not represent a commitment on the part of Primare AB.
Primare is a trademark of Primare AB.
This guide was produced by
Human-Computer Interface Ltd.
http://www.interface.co.uk
This user guide describes the features and explains how to set up the compact disc transport for the best sound quality and ease of operation in order to allow for the most enjoyable reproduction of sound from all your sources.
For additional support and assistance please contact your local authorized Primare dealer, or visit our website at www.primare.net.
Your DD35 is supplied with:
If any of these items are missing please contact your supplier. We recommend you retain the packaging in case you need to transport the unit at a later date.
Note that the DD35 is supplied with a protective film on the display glass. Remove the film for a clearer whiter display.
The DD35 Compact Disc Transport provides one coax digital output and one optical digital output for connection to a digital preamplifier or digital surround processor.
Plug one end of the mains cable supplied with the DD35 into the power connector on the back panel, and connect the other end to a wall socket.
If this cable is not suitable for your power outlets please contact your supplier for an alternative cable.
Note: See Phase for information about getting the best sound from your DD35.
WARNING: Always disconnect the DD35 from the mains power before connecting or disconnecting any cables.
The standby indicator will light up on the front panel.
button on the front panel or remote control.The display shows:
button on the front panel or remote control to open the tray.
button on the front panel, or the
button on the remote control, to close the tray and start playing the disc.For more information about playing a CD see Using the DD35.

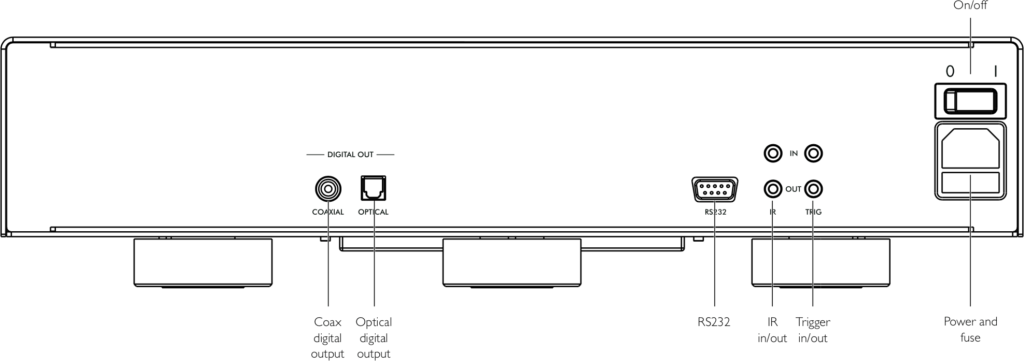

The following diagram explains the function of each of the connectors on the back panel:
The remote control can operate any associated Primare products you have in your system.
Press once to select the product on the top line of the button, or twice to select the product on the second line.
The indicators at the top of the remote control light when pressing a button to show which mode the remote control is in.
Before using the remote control you need to insert the two AAA cells supplied with the C25.
Note: Replace only with 1.5V alkaline cells type AAA or equivalent.
When disposing of old batteries please be considerate to the environment.
Switches the DD35 to standby, or switches it on from standby.
When the disc is stopped: plays the disc.
When the disc is playing: skips to the next track.
Press and hold: skips back through the tracks.
When the disc is playing: pauses the disc.
When the disc is paused: stops the disc.
When the disc is stopped: opens or closes the CD tray.
Press and hold: opens the CD tray.
Pressing and simultaneously displays the settings menus or exits from the menus.
In the settings menus:
Pressing or steps between the settings.
Holding down selects a setting or saves an edited setting.
Holding down navigates back or cancels editing a setting.
button on the front panel, or on the remote control, to open the tray. button again to close the tray (or press the button).The display shows:
followed by the number of tracks and total time:
button on the front panel, or the button on the remote control.While a disc is playing the display shows the current track number and the elapsed time of the current track; for example:
button on the front panel, or the button on the remote control, while the disc is playing.The display shows the pause symbol:
You can then resume play by pressing the button on the front panel or the button on the remote control.
button on the front panel or the remote control.You can step between tracks to locate a particular track on the disc, or you can scan forwards or backwards to locate a position within a track.
button on the front panel, or press the
button on the remote control. button on the front panel, or press the
button on the remote control.The front panel display shows the track number:
or button on the remote control to scan at 4X speed.The display shows the position within the track.
or button to start playing from the position you have located.You can choose how the time is shown on the front panel display, and change the brightness.
The display switches between the following four options:
Elapsed time for the current track
Remaining time for the current track
Elapsed time for the entire disc
Remaining time for the entire disc
If you turn the display off it will be restored briefly when you operate any control.
The display automatically dims after ten minutes; you can adjust this delay in the settings menus; see General settings.
You can play from any track by entering the track number on the remote control.
To enter a two-digit track number press and hold down the button corresponding to the first digit, and then press the second digit.
To enter a three-digit track number press and hold down the 0 button, and then press the three digits.
You can play the current track repeatedly, or repeat the entire disc.
While the disc is playing:
Press the
button on the remote control.
The front panel shows RPT.
Press the button twice.
The front panel shows RPT ALL.
Press the button again.
The RPT symbol in the display will be cleared.
You can view and change the DD35 settings from the front panel or remote control.
and on the front panel simultaneously, or the MENU button on the remote control.The settings menu is displayed:
or buttons on the front panel, or the
or
buttons on the remote control.The current setting is shown highlighted.
button on the front panel, or press the SELECT button on the remote control.The current value is shown highlighted.
or buttons on the front panel, or the or buttons on the remote control, to change the value of the setting.As you change it the new value is shown in the menu.
button on the front panel, or press the SELECT button on the remote control, to save the value you have set. button on the front panel, or press the
button on the remote control. and on the front panel simultaneously, or press the MENU button on the remote control.The PLAYBACK SETTINGS menu allows you to customise the auto resume feature:
Specifies whether disc playback will start from the previously saved point.
Choose OFF to play from the beginning or ON to play from the previously saved point.
The GENERAL SETTINGS menu allows you to configure the general operation of the DD35:
Choose LOCKED to lock the front panel buttons and knobs, or UNLOCKED (default) to use them.
To unlock the front panel buttons use the remote control to select this menu, or remove power from the DD35 for a few seconds.
Allows you to choose the delay for dimming the display after no user interaction, between: AFTER 1MIN, AFTER 5MIN, AFTER 10MIN (default), or OFF.
Displays the LED BRIGHTNESS menu to allow you to set the display brightness to between 1 and 5 for each display dimming level:
DIM HIGH (default 3), DIM MID (default 2), DIM LOW (default 1), or DIM OFF (default 1).
Displays the STANDBY SETTINGS menu to allow you to specify the standby settings.
AUTO-STANDBY automatically switches the DD35 to standby if there is no user interaction or audio from the current source for a specified delay: AFTER 10MIN, AFTER 15MIN, AFTER 20MIN (default), or OFF.
Resets the DD35 to the factory default settings.
You are prompted to confirm. Select YES to proceed or NO to cancel.
Displays the FIRMWARE VERSIONS menu to allow you to view the versions of firmware installed.
TEAC CD-5020-AAT
1x ESS Sabre ES9028PRO
Coaxial: RCA
Optical: TOSlink
44.1kHz
C25 system remote control
RS232
IR in/out
Trigger in/out
Off: 0W
Standby: 0.34W
Operating: <7W
430 x 385 x 106 mm (w x d x h) with knobs and connectors
430 x 382 x 106 mm (w x d x h) without knobs and connectors
10 kg
Black or titanium
These instructions help you get the best possible sound from your DD35.
The phase of the AC supply can make a significant difference to the sound.
Use the Polarity Pen supplied with the DD35 to verify which pin is live on your AC power cable.
Ensure that the live pin of the AC power cable is connected to the left-hand pin of the power connector, viewed from the back panel:
Your Primare will start to sound best after an initial burn-in of approximately 24 hours.
You will notice a further smaller improvement in sound quality for at least another 3 days’ playing.
The RS232 input allows you to connect the DD35 to a controller system. Use a twisted (null modem) cable. For more information contact Primare at info@primare.net or visit www.primare.net.
The Trigger output allows the DD35 to be switched on by other devices, such as an I35.
Your DD35 is an ideal companion to the Primare I35 Prisma Integrated Amplifier. For best results link the two products together as follows using the two cables supplied with the DD35:
The Trigger cable ensures that the I35 switches on, or to standby, when you operate the button on the front panel of the DD35.
Press and hold the standby button on the front panel to display the main firmware version number.
Press and hold the standby button on the front panel for 10 seconds to perform a factory reset of the DD35.
You can also do a factory reset from the Prisma app, or from the GENERAL SETTINGS menu; see General settings.
