Using WiSA loudspeakers with your Primare product
This user guide describes how to set up and use WiSA wireless loudspeakers with your Primare SC15 Prisma System Control Center or Primare PRE35 Preamplifier.
For additional support and assistance please contact your local authorized Primare dealer, or visit our website at www.primare.net.
The WiSA logo is a trademark or registered trademark of WiSA, LLC in the United States and other countries.
What is WiSA?
WiSA stands for Wireless Speaker and Audio, and it’s an audio standard that wirelessly transmits multichannel, high-definition audio. It supports up to eight channels of uncompressed digital audio at 96kHz, 24bit resolution.

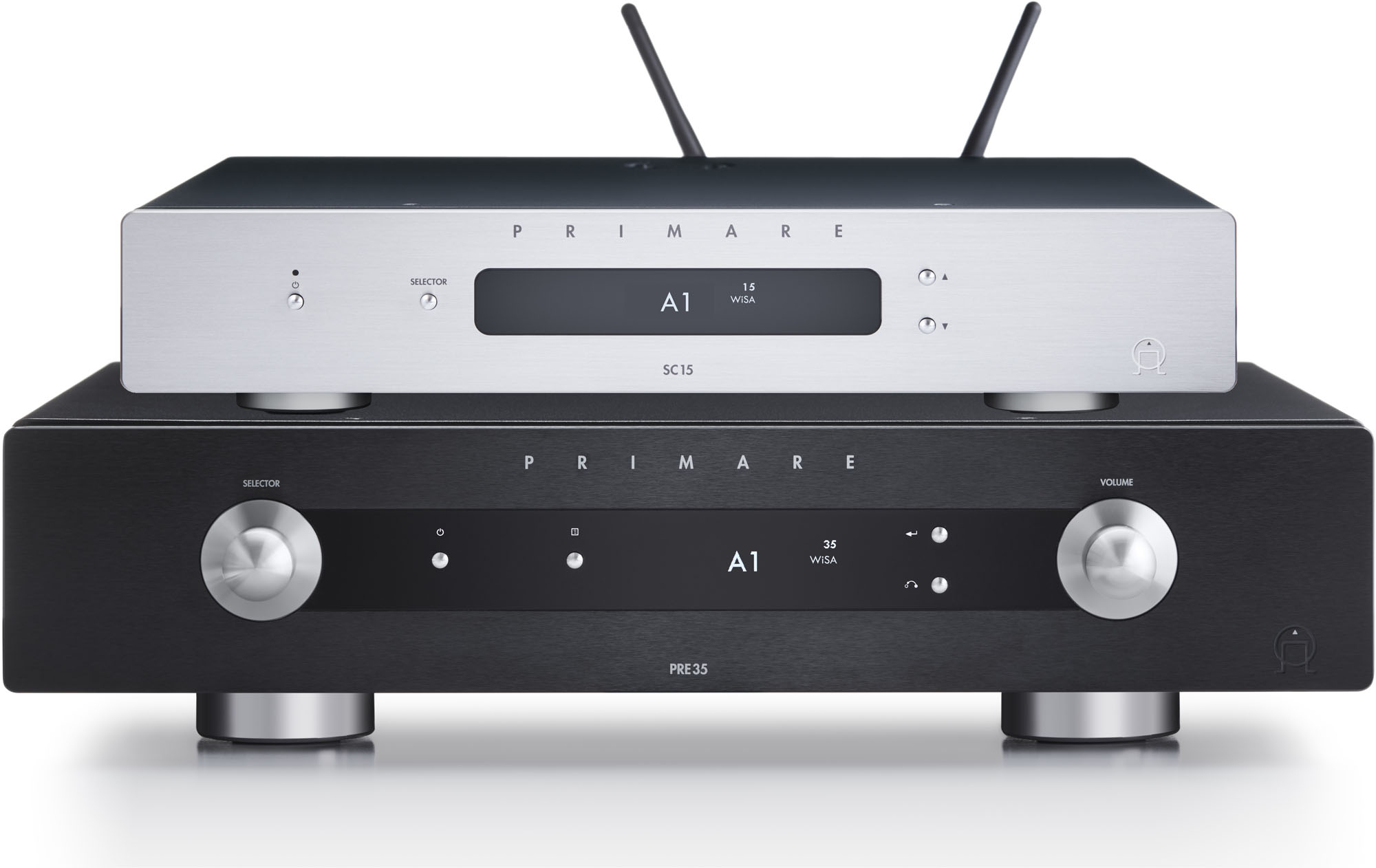

WiSA is supported by selected Primare products, such as the SC15 Prisma System Control Center or Primare PRE35 Preamplifier, allowing you to deliver a stereo audio signal to loudspeakers without the need for the usual loudspeaker cables.
The audio is transmitted using the license-free 5 GHz band, and it avoids interference by using dynamic frequency selection (DFS) to change channels when necessary.
To use WiSA speakers with your Primare product, they must be associated with the product. For more information see Getting started.
Switching on
If the WiSA module is on when your Primare product enters standby the WiSA module will always initiate when you turn your device on, and the display will show:
It will then start your found associated speakers. The display will show if your unit was unable to find any of your previously associated speakers.
WiSA will be shown in the display once the WiSA module is on and it has found and connected to WiSA speakers.
Communication
All communication between your Primare WiSA and a WiSA speakers will be at the highest WiSA standard 96kHz 24 bits. WiSA can only convert sample rates up to 192kHz 24bit. Therefore, when playing on DLNA/UPnP, DSD* and PCM streams with a sample rate above 96kHz will be converted to 96kHz 24bit (only when the WiSA module is ON).
* DSD conversion support coming with a future update.
Changing networks
Each WiSA transmitter creates its own WiSA network. If you have two or more WiSA transmitters it’s possible to have several separate WiSA networks in your home, but each loudspeaker can only be connected to one network.
To move a loudspeaker between WiSA networks
Dismiss the speaker from the WiSA network, and then add it to the second network.
Speaker types
This section explains which channel WiSA speakers will be assigned to by default when associated with your Primare device. For information about changing the channel see Associated WiSA speakers.
R speakers
These are labelled as FR, and will be added as Right.
L speakers
All speakers that are not labeled as FR will be added as Left.
Type C speakers
These speakers are labeled both FR and FL, and will therefore be added as both Right and Left but with the same MAC address.
For more information see Getting started.
WISA SETTINGS
On Primare products with WiSA the GENERAL SETTINGS menu provides an additional WISA SETTINGS option to allow you to configure the WiSA setup.
This has the following submenus:
WISA MODULE
Set to ON to turn on the WiSA module, or OFF to turn it off.
WISA NETWORK
Set to ON to broadcast to your WiSA associated speakers or OFF to stop broadcasting. You can also toggle this setting by pressing the SPS button on the back panel.
ADD SPEAKER
Adds speakers to your WiSA network without dismissing previous speakers.
ASSOCIATED WISA SPEAKERS
Shows all speakers associated with your WiSA network and identifies the speakers as R (right) or L (left):
Speakers are sorted according to their WiSA MAC address.
DISMISS ALL SPEAKERS: Removes all the speakers from your WiSA network, and puts the speakers in associate mode.
Selecting a speaker displays the options REASSIGN OUTPUT to allow you to reassign it between R and L, and DISMISS FROM NETWORK to allow you to dismiss that speaker.
WiSA setup
We recommend that you connect your WiSA speakers before you do the Prisma setup. Review your WiSA speaker manual and the following instructions before you continue.
Make sure your Prisma product has finished starting up before you continue. When it’s ready the display will show:
or:
If after completing this section your Primare product is not able to find all your speakers please check Troubleshooting.
Stereo setup for one R and one L speaker
- Make sure all your speakers are turned on and in associate mode, usually indicated by a flashing light on the speaker.
- Press and hold the SPS (Speaker Pairing System) button on the back panel of your Primare product for three seconds.
The display will show:
This will turn on the WiSA module and add all available WiSA speakers.
It will then show a notification of all the speakers it found:
Your speakers are now set up to your Primare device and ready to play.
Stereo setup for two L speakers
- Make sure only the speaker you want to use as the Right speaker is turned on and in associate mode, usually indicated by a flashing light on the speaker.
- Press and hold the SPS (Speaker Pairing System) button on the back panel of your Primare product for three seconds.
The display will show:
This will turn on the WiSA module and add all available WiSA speakers.
It will then show a notification of all the speakers it found:
- Go to the option ASSOCIATED WISA SPEAKERS in the WISA SETTINGS menu and change the associated speaker to Right.
- Turn on the speaker you want to use as the Left speaker and make sure it is in associate mode, usually indicated by a flashing light on the speaker.
- Select the ADD SPEAKER option in the WISA SETTINGS menu.
The notification should now show the additional entry:
Your speakers are now set up to your Primare device and ready to play.
Stereo setup for two C speakers
- Make sure all your speakers are turned on and in associate mode, usually indicated by a flashing light on the speaker.
- Press and hold the SPS (speaker pairing system) button for 3 seconds. You can find the button on the back next to the WiSA transmitter.
The display will show:
This will turn on the WiSA module and add all available WiSA speakers.
It will then show a list all the speakers it found:
- Make sure you set the speaker to the desired channel.
Your speakers are now set up to your Primare device and ready to play.
WiSA module does not start up.
- Go to WISA SETTINGS in the GENERAL SETTINGS menu and make sure the WiSA module is on.
Unable to connect to speakers
- Make sure your speakers are WiSA certified.
- Make sure your speakers are connected to power.
- Make sure your speakers are in associate mode.
- Select ADD SPEAKERS.
If above does not help and you are unable to find any speaker please contact a Primare store for service support.
If your device finds some but not all of the speakers
Please contact you speaker manufacturer for support.
Speakers are very quiet
If you feel that you need to turn up the volume a lot for your speaker to output any sound, your speaker may be missing WiSA certified firmware. Please contact your speaker manufacturer for support.
No sound from associated speakers
- Make sure the speaker is associated to your device.
- Make sure your Primare device is not muted
- Make sure WISA MODULE is set to ON and WISA NETWORK is set to ON.
- SC15 only: make sure your analog output setting is set to PRE, (Line mutes the WiSA output).
If there is still no sound out:
- Make sure that your Primare device outputs sound both on analog and digital out.
Please note that when playing on the PC/MAC input, if you play a sample rate above 192kHz the sound will not be output on WiSA.
If there is no sound from the digital output please contact your local Primare store for service support.
Product is stuck in “WiSA initiating please wait…”
Please contact your local primare store for service support
