This user guide describes the features and explains how to set up the network player for the best sound quality and ease of operation in order to allow for the most enjoyable reproduction of sound from all your sources.
Your NP5 Prisma MK2 is supplied with:
If any of these items are missing please contact your supplier. We recommend you retain the packaging in case you need to transport the unit at a later date.
The NP5 Prisma MK2 Network Player provides one coax digital output and one optical digital output for connection to a digital input.
If you want to control the volume from the NP5 Prisma MK2:
Alternatively, if you want to use the NP5 Prisma MK2 as a source, and adjust volume in a connected component:
For more information see Audio settings.
The NP5 Prisma MK2 can also be connected to another Primare device via RS232 to provide control of basic functions (standby on/off, mute, volume up/down, and input selection next/previous) from the Prisma application. For more information see RS232 Link setup.
WARNING: Always disconnect the NP5 Prisma MK2 from the mains power before connecting or disconnecting any cables.
Once connected to power it will directly power on.
For best results we recommend connecting using an Ethernet network cable. The NP5 Prisma MK2 requires one to two minutes to completely start up; please be patient. The Power/Source LED will show solid white light when startup is complete.
Using ethernet connection provides immediate access to your network and the network LED will show solid green. If the network LED is flashing blue, make sure your Ethernet cable is connected and it has a network connection.
To take advantage of Chromecast built-in related features and functionality – such as casting, voice control, and multi-room/multi-zone configuration and control – configuration must be done through Google Home app, with a Google account.
The network LED will flash blue when the NP5 Prisma MK2 is ready to be set up by WiFi.
You can connect to Wifi either by using iOS AirPlay speaker setup, Prisma Android app or Google Home app.
Please note, to take advantage of Chromecast built-in related features and functionality – such as casting, voice control, and multi-room/multi-zone configuration and control – set up and configuration must be done through Google Home, with a Google account.
AirPlay speaker setup
Go to the Wi-Fi menu under Settings on your iOS device. Select the Prisma model you wish to setup under “SET UP NEW AIRPLAY SPEAKER…” at the bottom of the list. Select the network you want your speaker to connect to and select “Next”. Follow the instructions on the screen to complete setup.
Prisma Android app
Open the Android Prisma app and following the instructions found at the link in the discovery page.
Google Home app
The Google Home app will display Set up NP5 Prisma.
A test tone will be played and you will be prompted to select a name for your NP5 Prisma MK2. If you cannot hear the test sound you may need to increase the volume on your amplifier.
Once you have configured the NP5 Prisma MK2 using the Google Home app the network LED will change from flashing blue to solid blue.
You will now be able to cast music to your NP5 Prisma MK2.
Either:
Or:
To view and change the NP5 Prisma MK2 settings you need the Primare Prisma app, which is available for free download on iOS devices from the Apple App Store and on Android devices from the Google Play Store.
In either case search for Primare Prisma to find the app.

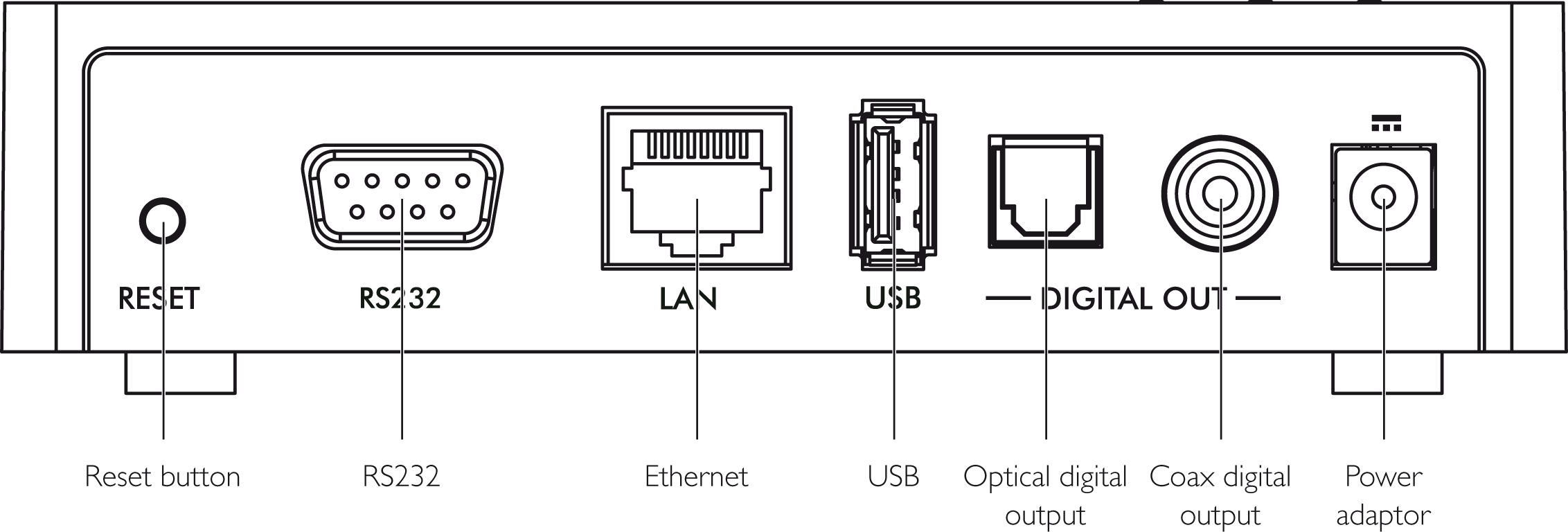

The following diagram explains the function of each of the connectors on the back panel:
You can play audio files from a USB flash drive, external USB hard disk, or a network drive. These options are ideal if you already have a digital library of CDs or music files.
See Technical specification for details of the supported file formats.
The USB drive can contain folders and music files in any of the popular formats; see Technical specification for details.
Note that playing music via the USB A input has the following restrictions:
The USB input is mainly for USB thumb and other portable hard drives and has been tested up to 2TB drives on NTFS and FAT32. Please note exFAT is not supported.
The USB A connection is recommended for less critical listening, as both signal and power go through this connection point, which we find subtly compromises performance when compared to a network connected hard drive.
The NP5 Prisma MK2 can use Chromecast built-in to connect directly to a music service that supports Chromecast, such as Qobuz, Deezer, Tidal, TuneIn Radio and more. The music is streamed direct to the NP5 Prisma MK2; once set up you can use your phone to make calls, or play other audio.
With a phone, tablet, or Mac/PC you can also play the audio wirelessly to the NP5 Prisma MK2, using Bluetooth or AirPlay (iOS only), so the sound from any apps you run on your device will be played through the NP5 Prisma MK2.
Although you can stream music over Wi-Fi, for best results connect the NP5 Prisma MK2 to your home router via an Ethernet cable. If necessary, use the Google Home app to configure the network settings on your NP5 Prisma MK2.
The NP5 Prisma MK2 has Chromecast built-in, which means you can stream (cast) music over your network directly to the NP5 Prisma MK2 from any Chromecast supported music service, using the music service’s app on your desktop or mobile device as a controller. To be able to use Chromecast, please see Getting started and how to configure NP5 Prisma MK2 with Google Home app.
Use AirPlay to send audio over the network from your Apple device to the NP5 Prisma MK2. AirPlay is only available on Apple devices.
Use Bluetooth to send audio directly to the NP5 Prisma MK2 from your Bluetooth device using Bluetooth connection. You don’t need a network to stream using Bluetooth.
The NP5 Prisma MK2 supports Spotify Connect, which means you can stream music directly to the NP5 Prisma MK2 from the Spotify music service over your network, using the Spotify app on your desktop or mobile device as a controller.
Use your phone, tablet, or computer as a remote control for Spotify. Go to http://spotify.com/connect to learn how.
The NP5 Prisma MK2 is certified as Roon Ready and as such should appear in the Roon Ready devices section of the Audio settings menu in the Roon application, allowing the NP5 Prisma to be enabled for use with Roon.
For more information go to https://roonlabs.com/getting-started
You can view and change the NP5 Prisma MK2 settings using the Prisma app. For more information see Download the Prisma app.
The Audio settings menu allows you to customise the following settings:
Specifies whether the output is Variable (default) or Fixed.
Selecting Fixed will show a loud-volume warning. Select Yes to proceed or No to cancel the fixed gain setting.
If Variable is selected the following additional settings are available.
Allows you to adjust the balance between L (left) and R (right), where centered is default.
This setting determines the default output volume of your NP5 Prisma MK2.
Select last used to use the last used volume prior entering standby, or select specified to set a specific volume.
Default setting is “specified” with volume 50.
Sets the maximum volume limit between 0 and 99. The default is 99.
Sets the volume when the unit is muted. You can choose between 0 (default) and 30.
If the current volume is lower than the specified Mute volume, the volume will be set to 0 when pressing mute.
Select preferred mode and sample rate for the digital outputs.
Native mode: Outputs the input sample rate (without up-sampling) up to the selected sample rate. Higher sample rates will be down-sampled to selected sample rate.
Fixed mode: To up/down-sample all input sample rates to the selected sample rate. Choose between 44.1, 48, 88.2, 96, 176.4, 192 kHz.
Note: for MQA passthrough, set the digital output to Native and sample rate to 192 kHz, for connection to an MQA DAC.
DoP mode: select this option if wishing to play DSD over PCM files when using Roon. Note: this is only available when using Roon and requires connection to a DAC capable of accepting DoP file input.
The General settings menu allows you to configure the general operation of the NP5 Prisma MK2:
Displays the Standby settings menu to allow you to specify the standby settings.
Auto-standby automatically switches the NP5 Prisma MK2 to standby if there is no user interaction or audio from the current source for a specified delay: After 10min, After 15min, After 20min (default), or never.
Note: The Auto-standby function is disabled in Wi-Fi setup mode.
The RS232 Link submenu lets you customise your RS232 link settings. For information about setting up a link see RS232 Link setup.
Resets the NP5 Prisma MK2 to the factory default settings.
You are prompted to confirm. Select Yes to proceed or No to cancel.
You can also perform a factory reset by pressing and holding the Reset button on the rear panel for 6 seconds. All LEDs will begin to flash red to warn you. Factory reset is in progress while all 3 LED are RED. Do not remove power during this process.
The Streaming settings menu allows you to configure the NP5 Prisma MK2 streaming:
Displays the Bluetooth settings menu.
Visible can be set to On to make the NP5 Prisma MK2 visible to other Bluetooth devices, or Off (default) to make the NP5 Prisma MK2 not visible.
Note: Visible allows any Bluetooth-enabled device within range to discover and pair with your NP5 Prisma MK2.
Auto-connect can be set to On to automatically reconnect to a paired mobile Bluetooth device when the Bluetooth input on the NP5 Prisma MK2 is selected, or Off (default) to disable automatic connection.
AirPlay password
Allows you to set an optional password for connection by AirPlay. Leave empty for no password.
Shows following information:
Shows the Prisma app version you currently are using on your handheld device.
Shows the following information for your NP5 Prisma MK2:
This gives you the option to rename the NP5 Prisma MK2 to a more convenient name in your network, like “Livingroom streamer”.
Coaxial: RCA
Optical: TOSlink
Selectable fixed or native: 44.1 kHz/16, 48, 88.2, 96, 176.4 or 192 kHz/24bit
1x USB-A up to 192kHZ/24bit;
up to DSD128 (5.6MHz) converted to PCM for output
1 x Ethernet LAN port
2 x Internal antennas for Bluetooth and Wi-Fi
LAN: 10/100Mbit Ethernet port
WLAN: IEE 802.11 a/b/g/n/ac compliant; 2.4/5GHz; b, g, n mode
WAV, LPCM, AIFF, FLAC, ALAC, WMA, OGG:
Up to 192kHz/24bit
MP3, MP4 (AAC):
Up to 48kHz/16bit, VBR & CBR 320kbps
DSD:
Up to DSD128 (5.6MHz) converted to PCM output
MQA: passthrough
AirPlay 2
Bluetooth®
Chromecast built-in
Roon Ready
Spotify Connect
DLNA/UPnP
RS232 – for use with external control systems
RS232 Link – for control of other Primare products using RS232 connection
5 Volt, 2 Amp, DC
Standby: <2.9W
Operate: <3.6W
143 x 125 x 36 mm (wxdxh) with knobs and connectors
143 x 120 x 36 mm (wxdxh) without knobs and connectors
0.5 kg
Black
These instructions help you get the best possible performance from your NP5 Prisma MK2.
Your NP5 Prisma MK2 can be linked to another Primare product using the RS232 Link function to add Prisma capabilities to it. It will allow you to control the input, volume, and standby on the linked device using the Prisma app.
The procedure is as follows:
The Link status should now change to Connected and you can use the Prisma app to control the volume, step between inputs, and switch between on and standby.

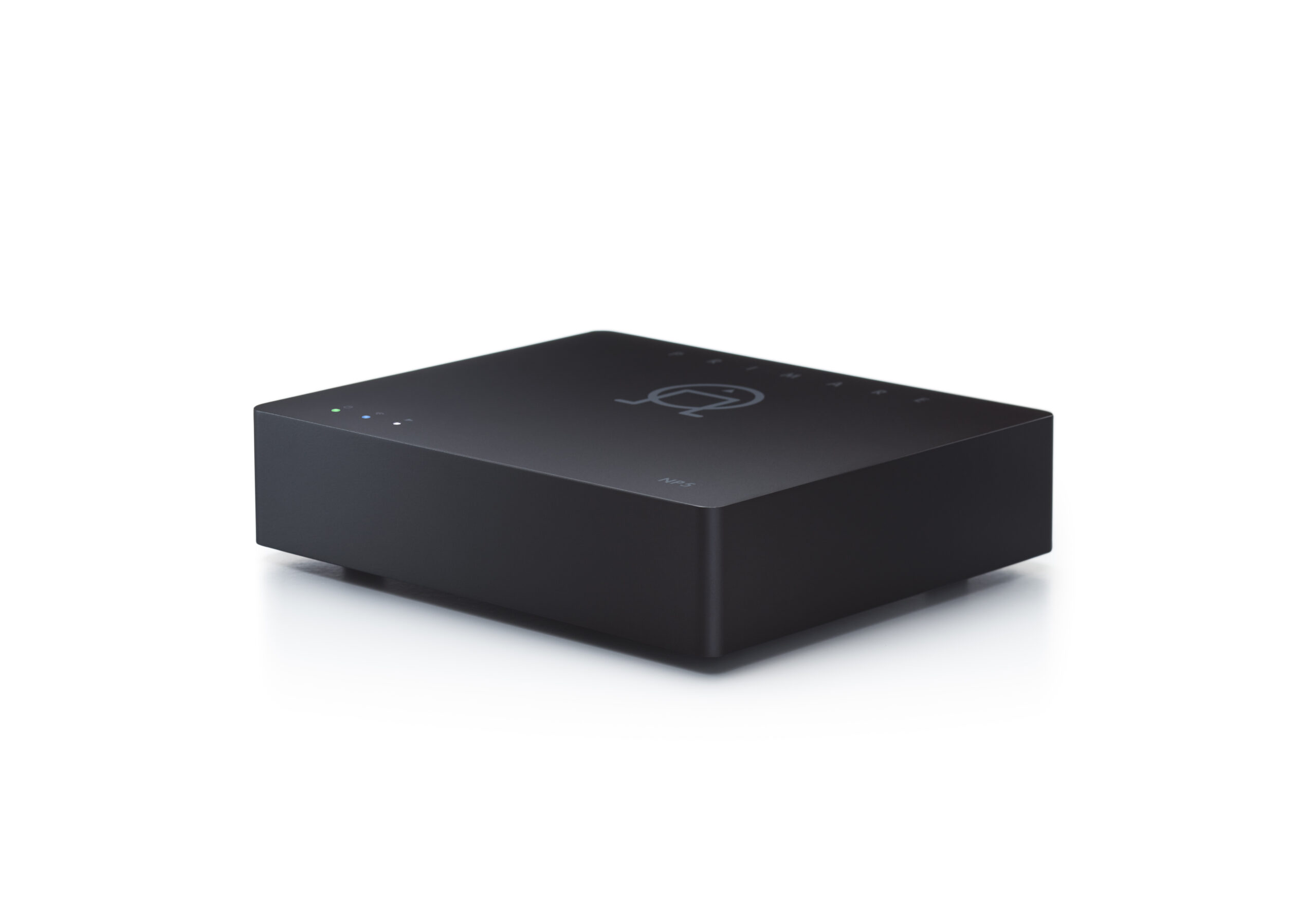

The table below explains the meaning of the top panel indicators:
| Colours * | Power/Source | Network | Playing |
| White flash |
Starting up |
N/A | N/A |
| White pulse |
Rebooting network module |
N/A | N/A |
| White solid |
Chromecast, Roon Ready, AirPlay and UPnP/DLNA |
N/A | Playing |
| Green flash | N/A | Connected by cable. Configure network ** | N/A |
| Green solid | Spotify Connect | Connected by cable. | N/A |
| Blue flash | N/A | Set up Wi-Fi ** | N/A |
| Blue solid | Bluetooth | Connected by Wi-Fi | N/A |
| Red flash | Countdown to factory reset | ||
| Red pulse | Restart in progress | ||
| Red solid | Factory reset/firmware update in progress | ||
* Indicators are dimmed while in standby.
** Set up or configure the network using the Google Home app; see Connect to a network.
You can do a factory reset from the Prisma app from the General settings menu; see General settings, or by pressing and holding the Reset button on the rear panel for 6 seconds.
